SOLOVOX S9

August 27, 2022October 19, 2024 Admin 0 Comments ACECONN Box, ACECONN IPTV Box, Android 11, S9 Android 11, S9 TV On Air, SOLOVOX ACE, SOLOVOX S9, SOLOVOX SWORD, SWORD Plus, SWORD TV Box, TOA Box, TV On Air, TV On Air IPTV Box, TV Plus Pro

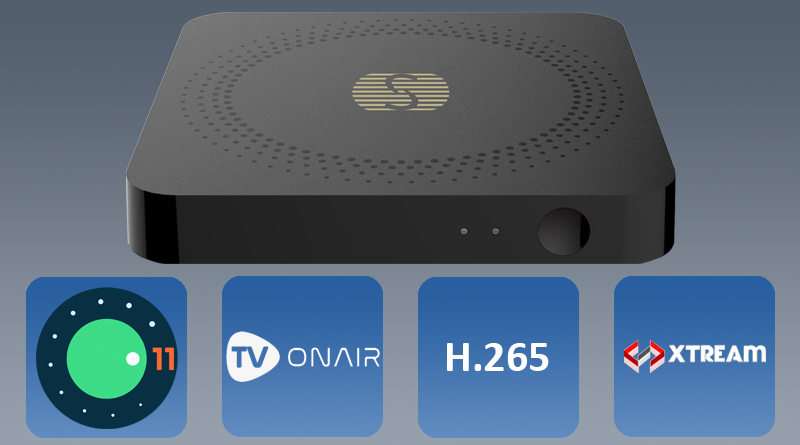

The SOLOVOX S9 is a versatile and powerful Android TV box running Android 11, offering a range of advanced features for entertainment and streaming. It’s equipped with the Amlogic S905W2 chipset, a Quad-Core ARM Cortex-A35 processor, providing efficient performance for media playback, gaming, and general app usage.

The device supports 4Kx2K video decoding at 30fps, which means it can handle Ultra HD content with crisp details and vibrant colors. It’s suitable for users with 4K displays, although higher frame rates for 4K are not supported.

The box is equipped with 2.4GHz and 5GHz dual-band Wi-Fi, offering flexibility for network connections. 5GHz Wi-Fi provides faster speeds and more stable connections, especially in environments with many devices.

The SOLOVOX S9 supports Bluetooth 5.1, which ensures better wireless connectivity for peripherals like controllers, keyboards, and other Bluetooth-enabled devices. This version of Bluetooth improves connection stability, speed, and range over previous versions.

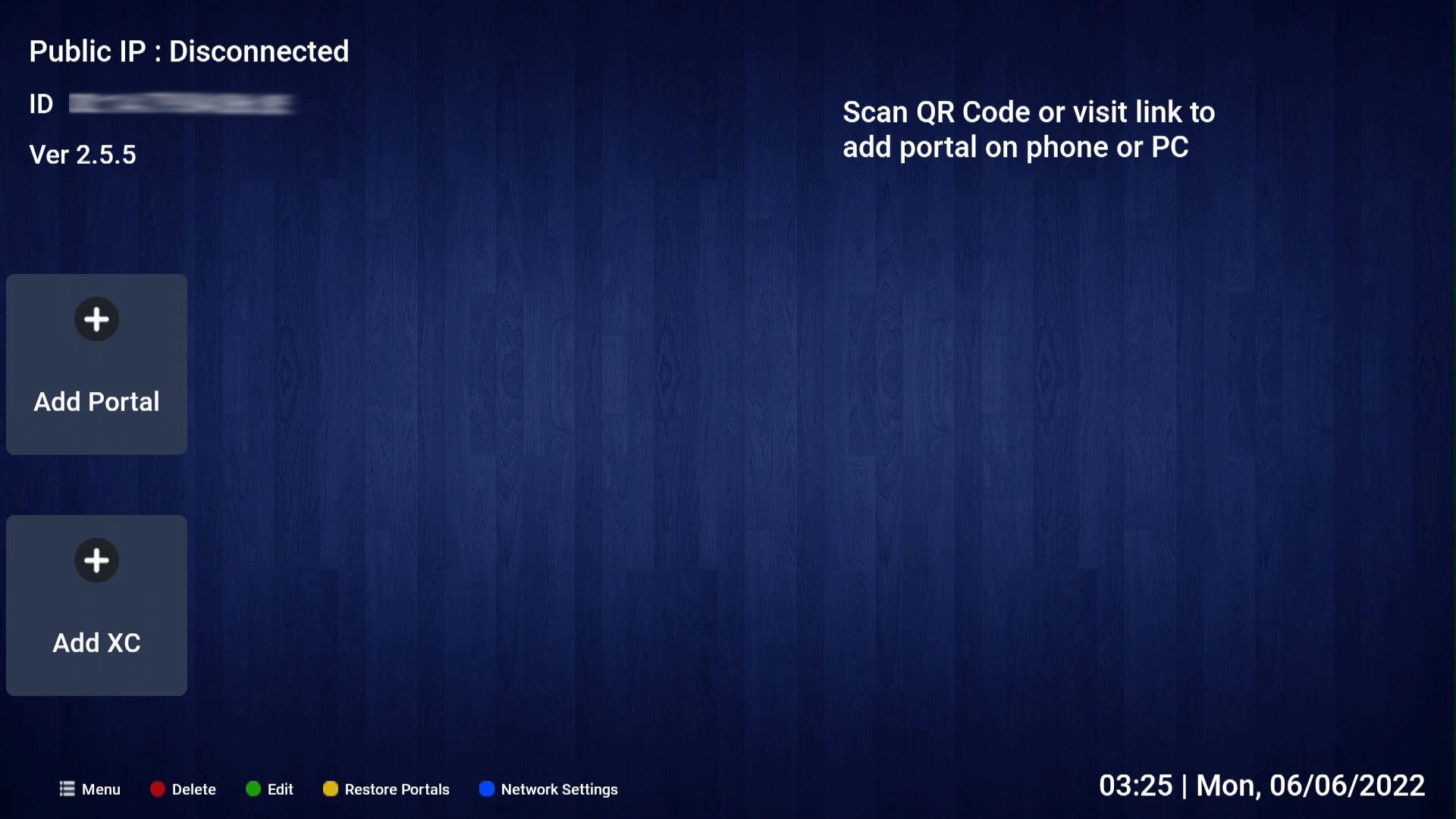

The SOLOVOX S9 comes pre-installed with the TV ON AIR streaming app, giving users instant access to streaming channels and video content, making the device a ready-to-use streaming solution right out of the box once you activate your subscription.

Main Features

Android 11 system-based
TVONAIR Streaming App built-in to support the MARS TV X service perfectly
4Kx2k@30fps resolution
HDMI 2.1 Supported
Dualband Mimo WiFi(2.4G/5G) module built-in
AV1/HEVC/H.265 technology supported
User-friendly interface
Premium quality remote control unit
OTA update for both system and apps
Youtube/Netflix and more apps

OS

Android 11

Dimension

107*107*20 (mm)

Processor

Quad-core ARM Cortex-A35 CPU

GPU

G31 MP2 GPU processor, OpenGL ES 3.2 Vulkan 1.1 and OpenCL 2.0

RAM Memory

Storage

16GB

Network

IEEE 802.11 b/g/n/ac, 2.4g/5g dual-band Wi-Fi with dual antenna, 10/100 Ethernet MAC

Bluetooth

Bluetooth 5.1

Housing

Black Color

DC Power

5V/2A Input

HDMI

Up to 4K*2K UHD Output

AV OUT

480i/576i standard definition output

USB

2* USB 2.0

RJ45

Ethernet Interface 10/100M

Optical

Optical Port for digital audio output

TF Card

Support 4GB/8GB/16GB/32GB/64GB

Power

DC 5V/2A

LED Indicator

Working/Blue, Standby/Red, Wi-Fi/White

Video&Picture

VideoEngine (AVE) with dedicated hardware decoders and SW H.264/VP8 encoders
Support multi-video decoder up to 4x1080P@60fps
Support multiple ‘secured’ video decoding sessions and simultaneous decoding and encoding
Video/Picture Decoding
AV1 MP-10@L5.1 up to 4Kx2K@30fps
VP9 Profile-2 up to 4Kx2K@30fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@30fps
AVS2-P2 Profile up to 4Kx2K@30fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1SP/MP/AP up to 1080P@60fps
AVS-P16 (AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
Multiple languages and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation, and transition effects
Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4 and *.jpg file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Dolby Audio Optional, DTS Optional, and is programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio IEC958 input/output, SPDIF input/output and PCM input/output, SPDIF supports 192KHz 16/24/32bit stereo
TDM/PCM/I2S audio interface supporting 2-channel input and 8-channel (7.1) output
Digital microphone PDM input with programmable CIC, LPF, HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with a combination of analog+PCM or I2S+PCM


HD JPEG, BMP, GIF, PNG, and TIF

Language

English, French, Germany, Spanish, Dutch, Italian, Arabic, Russian, Portugal, etc multilateral languages

The Unboxing

Packages

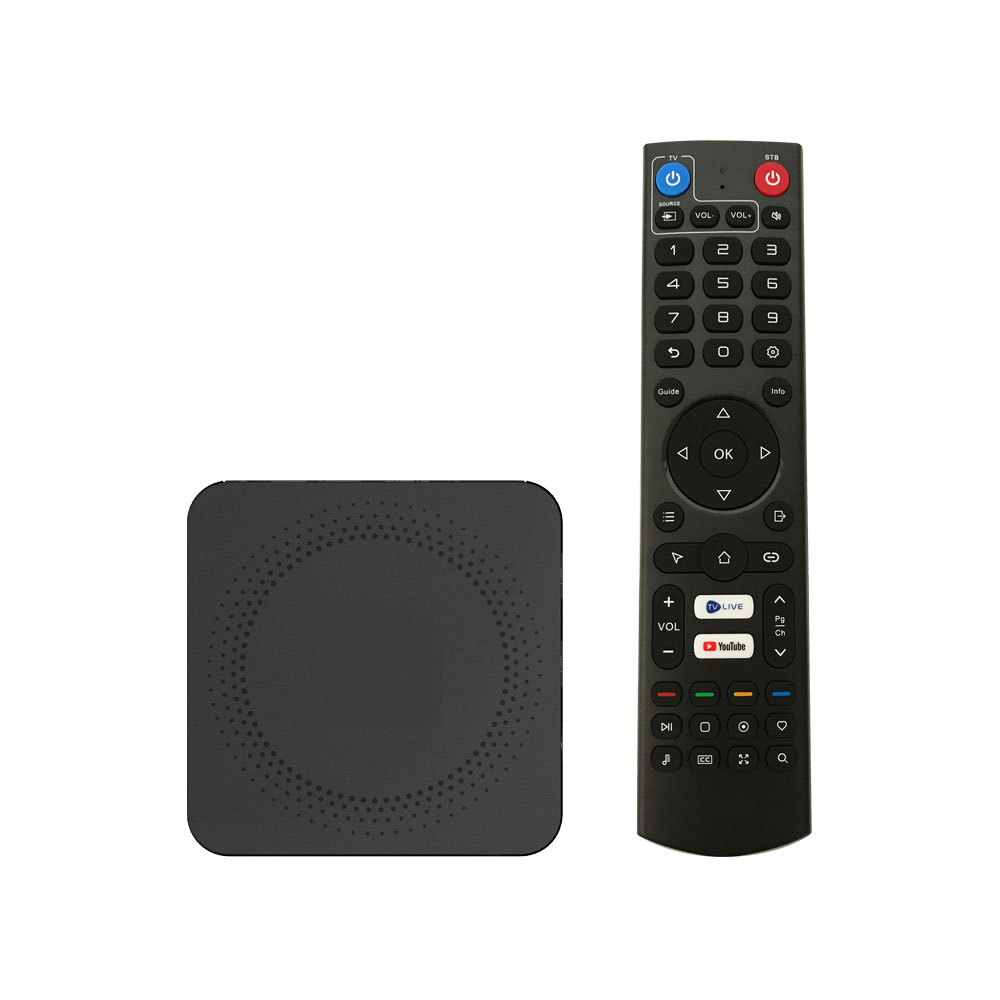

The main device is accompanied by its Power Adapter, HDMI Cable, Remote Controller, and User Manual.
